SB系列
|
Bearing
No. |
Shaft Dia. |

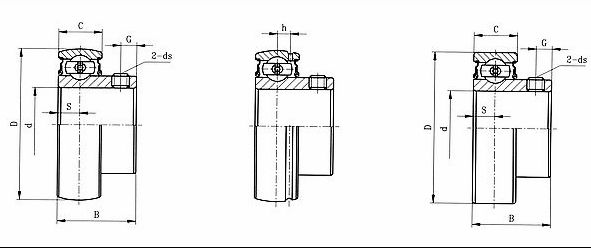

Dimensions(mm) |
Basic load ratings
(N) |
Mass
(kg) | ||||||||
|
d |
D |
B |
C |
S |
h |
G |
ds |
Dynamic
Cr |
Static
Cor | |||
|
(in.) |
(mm) | |||||||||||
|
SB201
201-8
202
202-10 |
1/2
5/8 |
12
15
|
40
1.5748 |
22
0.8661 |
12
0.4724 |
6
0.2362 |
3.6
0.1417 |
4
0.1575 |
M5X0.8
10#-32UNF |
9550 |
4780 |
0.10
0.09
0.10
0.08 |
|
SB204-12
204 |
3/4
|
20 |
47
1.8504 |
25
0.9843 |
14
0.5512 |
7
0.2756 |
4
0.1575 |
5
0.1969 |
M6X1
1/4-28UNF |
12800 |
6650 |
0.15
0.13 |
|
SB205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
52
2.0472 |
27
1.0630 |
15
0.5906 |
7.5
0.2953 |
4.3
0.1693 |
5.5
0.2165 |
M6X1
1/4-28UNF |
14000 |
7880 |
0.18
0.17
0.18
0.16 |
|
SB206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
62
2.4409 |
30
1.1811 |
16
0.6299 |
8
0.3150 |
5
0.1969 |
6
0.2362 |
M6X1
1/4-28UNF |
19500 |
11200 |
0.28
0.26
0.25
0.24 |
|
SB207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
72
2.8346 |
32
1.2598 |
17
0.6693 |
8.5
0.3346 |
5.7
0.2244 |
6
0.2362 |
M6X1
1/4-28UNF |
25700 |
15200 |
0.43
0.41
0.38
0.42
0.37 |
|
SB208-24
208-25
208 |
1-1/2
1-9/16
|
40 |
80
3.1496 |
34
1.3386 |
18
0.7087 |
9
0.3543 |
6.2
0.2441 |
7
0.2756 |
M8X1
5/16-24UNF |
29600 |
18200 |
0.60
0.58
0.60 |
|
SB209-26
209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
85
3.3465 |
41.2
1.6220 |
19
0.7480 |
10.2
0.4016 |
6.8
0.2677 |
8.2
0.3228 |
M8X1
5/16-24UNF |
31850 |
20800 |
0.8 |
|
SB210-30
210-31
210 |
1-7/8
1-15/16
|
50 |
90
3.5433 |
43.5
1.7126 |
20
0.7874 |
10.9
0.4291 |
6.5
0.2559 |
9.2
0.3622 |
M8X1
5/16-24UNF |
35100 |
23200 |
0.8 |
|
SB211-32
211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
100
3.9370 |
45.3
1.7835 |
23
0.9055 |
11.8
0.4646 |
7.2
0.2835 |
9.8
0.3858 |
M8X1
5/16-24UNF |
43550 |
29200 |
1.1 |
|
SB212-36
212
212-39 |
2-1/4
2-7/16 |
60
|
110
4.3307 |
53.7
2.1142 |
24
0.9449 |
14.9
0.5866 |
8
0.3150 |
9.8
0.3858 |
M10X1.25
3/8-24UNF |
47800 |
32800 |
1.3 |
