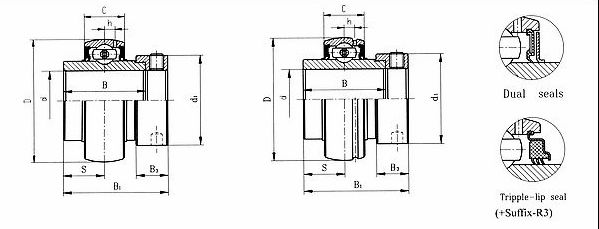

NA200,HC200系列
|
Bearing
No. |
Shaft Dia. |
Dimensions(mm) |
Eccenteic
collar |
Basic load ratings(N) |
Mass
(kg) | |||||||||
|
d |
D |
C |
B |
S |
S1 |
G |
h |
d1 |
Dynamic
Cr |
Static
Cor | ||||
|
(in.) |
(mm) | |||||||||||||
|
NA202
HC202-10
203
203-11 |
5/8
11/16 |
15
17 |
40
1.5748 |
14
0.5512 |
27.8
1.0945 |
13.9
0.5472 |
37.3
1.4685 |
13.5
0.5315 |
3.5
0.1378 |
28.6
1.1260 |
A202
202-10
203
203-11 |
9550 |
4780 |
0.22
0.21
0.20
0.19 |
|
NA204-12
HC204 |
3/4
|
20 |
47
1.8504 |
16
0.6299 |
34
1.3386 |
17
0.6693 |
43.5
1.7126 |
13.5
0.5315 |
4.4
0.1732 |
33.3
1.3110 |
A204-12
204 |
12800 |
6650 |
0.23
0.22 |
|
NA205-14
HC205-15
205
205-16 |
7/8
15/16
1 |
25 |
52
2.0472 |
17
0.6693 |
34.8
1.3701 |
17.4
0.6850 |
44.3
1.7441 |
13.5
0.5315 |
4.3
0.1693 |
38.1
1.5000 |
A205-14
205-15
205
205-16 |
14000 |
7880 |
0.29
0.27
0.25
0.24 |
|
NA206-18
HC206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30
|
62
2.4409 |
19
0.7480 |
36.4
1.4431 |
18.2
0.7165 |
48.3
1.9016 |
15.9
0.6260 |
5
0.1969 |
44.5
1.7520 |
A206-18
206
206-19
206-20 |
19500 |
11200 |
0.43
0.41
0.40
0.38 |
|
NA207-20
HC207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
72
2.8346 |
20
0.7874 |
37.6
1.4803 |
18.8
0.7402 |
51.1
2.0118 |
17.5
0.6890 |
5.8
0.2283 |
55.6
2.1890 |
A207-20
207-21
207-22
207
207-23 |
25700 |
15200 |
0.68
0.65
0.61
0.60
0.58 |
|
NA208-24
HC208-25
208 |
1-1/2
1-9/16
|
40 |
80
3.1496 |
21
0.8268 |
42.8
1.6850 |
21.4
0.8425 |
56.3
2.2165 |
18.3
0.7205 |
6.3
0.2480 |
60.3
2.3470 |
A208-24
208-25
208 |
29600 |
18200 |
0.83
0.79
0.78 |
|
NA209-26
HC209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
85
3.3465 |
22
0.8661 |
42.8
1.6850 |
21.4
0.8425 |
56.3
2.2165 |
18.3
0.7205 |
6.8
0.2677 |
63.5
2.5000 |
A209-26
209-27
209-28
209 |
31850 |
20800 |
0.96
0.91
0.87
0.85 |
|
NA210-30
HC210-31
210 |
1-7/8
1-15/16
|
50 |
90
3.5433 |
23
0.9055 |
49.2
1.9370 |
24.6
0.9685 |
62.7
2.4685 |
18.3
0.7205 |
6.5
0.2559 |
69.9
2.7520 |
A210-30
210-31
210 |
35100 |
23200 |
1.10
1.04
1.01 |
|
NA211-32
HC211-34
211
211-35 |
2
2-1/8
2-3/16 |
55
|
100
3.9370 |
25
0.9843 |
55.4
2.1811 |
27.7
1.0906 |
71.3
2.8071 |
20.7
0.8150 |
7.2
0.2835 |
76.2
3.0000 |
A211-32
211-34
211
211-35 |
43550 |
29200 |
1.58
1.44
1.39
1.36 |
|
NA212-36
HC212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
110
4.3307 |
27
1.0630 |
61.8
2.4331 |
30.9
1.2165 |
77.7
3.0591 |
22.3
0.8780 |
8.2
0.3228 |
84.2
3.3150 |
A212-36
212
212-38
212-39 |
47800 |
32800 |
2.03
1.87
1.85
1.76 |
|
NA213-40
HC213 |
2-1/2
|
65 |
120
4.7244 |
28
1.1024 |
68.2
2.6850 |
34.1
1.3425 |
85.7
3.3740 |
23.5
0.9252 |
8
0.3150 |
86
3.3858 |
A213-40
213 |
57200 |
40000 |
2.51
2.41 |
|
NA214-44
214 |
2-3/4 |
70 |
125
4.9213 |
30
1.1811 |
68.2
2.6850 |
34.1
1.3425 |
85.7
3.3740 |
23.5
0.9252 |
9
0.3543 |
96.8
3.8110 |
A214-44
214 |
60800 |
45000 |
2.58
2.57 |
|
NA215
HC 215-48 |
3 |
75
|
130
5.1181 |
30
1.1811 |
74.6
2.9370 |
37.3
1.4685 |
92.1
3.6260 |
23.9
0.9409 |
9
0.3543 |
102
4.0160 |
A215
215-48 |
66000 |
49500 |
2.84
2.74 |
