UC300系列
|
Bearing No. |
Shaft Dia. |
Dimensions(mm) |
Basic load rating (N) |
Mass (kg) | |||||||||
|

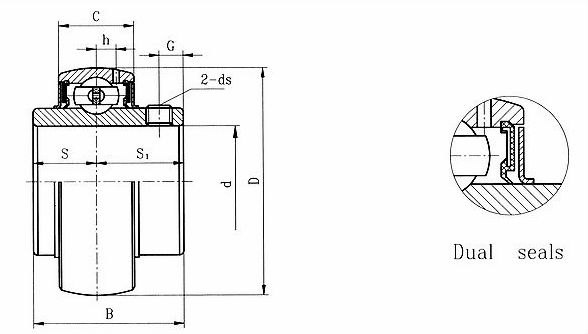

d |
D |
B |
C |
S |
S1 |
G |
h |
ds |
Dynamic Cr |
Static Cor | |||
|
(in.) |
(mm) | ||||||||||||
|
UC 305-14 305-15 305 305-16 |
7/8 15/16 1 |
25 |
62 2.4409 |
38 1.4961 |
21 0.8268 |
15 0.5906 |
23 0.9055 |
6 0.2362 |
6.2 0.2441 |
M6X1 1/4-28UNF |
22360 |
11500 |
0.38 0.36 0.35 0.34 |
|
UC 306-18 306 306-19 |
1-1/8 1-3/16 |
30 |
72 2.8346 |
43 1.6929 |
24 0.9449 |
17 0.6693 |
26 1.0236 |
6 0.2363 |
6.5 0.2559 |
M6X1 1/4-24UNF |
27000 |
15200 |
0.58 0.56 0.56 |
|
UC 307-20 307-21 307-22 307 |
1-1/4 1-5/16 1-3/8 |
35 |
80 3.1496 |
48 1.8898 |
25 0.9843 |
19 0.7480 |
29 1.1417 |
8 0.3150 |
7.2 0.2835 |
M8X1 5/16-24UNF |
33500 |
19200 |
0.77 0.74 0.71 0.71 |
|
UC308-24 308-25 308 |
1-1/2 1-9/16 |
40 |
90 3.5433 |
52 2.0472 |
28 1.1024 |
19 0.7480 |
33 1.2992 |
10 0.3937 |
8.5 0.3346 |
M10X1.25 3/8-24UNF |
40560 |
24000 |
1.00 0.98 0.96 |
|
UC309-26 309-27 309-28 309 |
1-5/8 1-11/16 1-3/4 |
45 |
100 3.9370 |
57 2.2441 |
30 1.1811 |
22 0.8661 |
35 1.3780 |
10 0.3937 |
9 0.3543 |
M10X1.25 3/8-24UNF |
53000 |
31800 |
1.36 1.33 1.30 1.28 |
|
UC310-30 310-31 310 |
1-7/8 1-15/16 |
50 |
110 4.3307 |
61 2.4016 |
32 1.2598 |
22 0.8661 |
39 1.5354 |
12 0.4724 |
9.9 0.3898 |
M12X1.25 7/6-20UNF |
61750 |
37800 |
1.74 1.68 1.65 |
|
UC311-32 311-34 311 311-35 |
2 2-1/8 2-3/16 |
55 |
120 4.7244 |
66 2.5984 |
34 1.3386 |
25 0.9843 |
41 1.6142 |
12 0.4724 |
10.6 0.4173 |
M12X1.25 7/6-20UNF |
71500 |
44800 |
2.08 1.90 1.90 1.87 |
|
UC312-36 312 312-38 312-39 |
2-1/4 2-3/8 2-7/16 |
60 |
130 5.1181 |
71 2.7953 |
36 1.4173 |
26 1.0236 |
45 1.7717 |
12 0.4724 |
11.3 0.4449 |
M12X1.25 7/6-20UNF |
81600 |
51800 |
2.65 2.60 2.57 2.50 |
|
UC313-40 313 |
2-1/2 |
65 |
140 5.5118 |
75 2.9528 |
38 1.4961 |
30 1.1811 |
45 1.7717 |
12 0.4724 |
12.1 0.4764 |
M12X1.25 7/16-20UNF |
93860 |
60500 |
3.30 3.25 |
|
UC314-44 314 |
2-3/4 |
70 |
150 5.9055 |
78 3.0709 |
40 1.5748 |
31 1.2205 |
47 1.8504 |
12 0.4724 |
12.8 0.5039 |
M12X1.25 7/16-20UNF |
104260 |
68000 |
3.96 3.95 |
|
UC315 315-48 |
3 |
75 |
160 6.2992 |
82 3.2283 |
42 1.6535 |
32 1.2598 |
50 1.9685 |
14 0.5512 |
13.5 0.5315 |
M14X1.5 1/2-20UNF |
113360 |
76800 |
4.33 4.24 |
|
UC316 |
|
80 |
170 6.6929 |
86 3.3858 |
44 1.7323 |
34 1.3386 |
52 2.0472 |
14 0.5512 |
14.5 0.5709 |
M14X1.5 1/2-20UNF |
122850 |
86500 |
5.57 |
|
UC317-52 317 |
3-1/4 |
85 |
180 7.0866 |
96 3.7795 |
46 1.8110 |
40 1.5748 |
56 2.2047 |
16 0.6299 |
15.5 0.6102 |
M16X1.5 5/8-18UNF |
132600 |
96500 |
7.08 6.84 |
|
UC318-56 318 |
3-1/2 |
90 |
190 7.4803 |
96 3.7795 |
48 1.8898 |
40 1.5748 |
56 2.2047 |
16 0.6299 |
16.5 0.6496 |
M16X1.5 5/8-18UNF |
143000 |
10800 |
8.03 7.87 |
|
UC319 319-60 |
3-3/4 |
95 |
200 7.8740 |
103 4.0551 |
50 1.9685 |
41 1.6142 |
62 2.4409 |
18 0.7087 |
16.7 0.6574 |
M16X1.5 5/8-18UNF |
156000 |
122000 |
8.91 8.88 |
|
UC320 320-64 |
4 |
100 |
215 8.4646 |
108 4.2520 |
54 2.2160 |
42 1.6535 |
66 2.5984 |
18 0.7087 |
19 0.7480 |
M18X1.5 5/8-18UNF |
171600 |
140000 |
11.2 11.0 |
