U 000系列
|
Unit |
Shaft
Diam
mm |

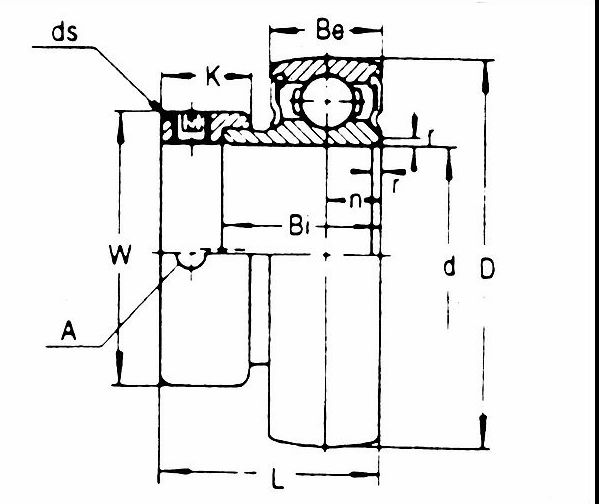

Dimensions mm |
Basic Load Rating kgf. |
Wt.
Ib | ||||||||||
|
D |
L |
Bi |
Be |
r |
n |
K |
W |
A |
ds |
Dynamic Cr |
Static Cor | |||
|
U 000
U 001
U 002 |
10
12
15 |
26
28
32 |
17.5
17.5
18.5 |
11
11
12 |
8
8
9 |
0.5
0.5
0.5 |
4
4
4.5 |
8.5
8.5
8.5 |
17
19
22 |
3.5
3.5
3.5 |
M4×0.7
M4×0.7
M4×0.7 |
470
520
570 |
200
245
290 |
0.07
0.08
0.11 |
|
U 003
U 004
U 005 |
17
20
25 |
35
42
47 |
20.5
24.5
25.5 |
13.5
16.5
17.5 |
10
12
12 |
0.5
1
1 |
5
6
6 |
9.5
11
12 |
25
30
36 |
3.5
5
5 |
M4×0.7
M5×0.8
M5×0.8 |
610
955
1030 |
335
515
595 |
0.14
0.23
0.30 |
|
U 006
U 007 |
30
35 |
55
62 |
26.5
29.5 |
18.5
20 |
13
14 |
1.5
1.5 |
6.5
7 |
12
13.5 |
42
48 |
5
5 |
M5×0.8
M6×0.75 |
1350
1625 |
845
1050 |
0.42
0.56 |
