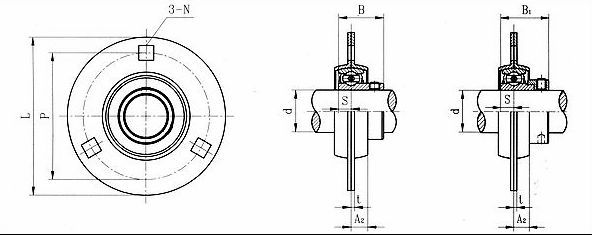

SBPF200,SAPF200系列
|
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing
No. |
Mass
(kg) | |||||||||
|
d |
L |
P |
A2 |
t |
N |
S |
B | |||||||
|
(in.) |
(mm) | |||||||||||||
|
SBPF 201
201-8
202
202-10
203
203-11 |
1/2
5/8
11/16 |
12
15
17
|
82 |
64 |
7 |
2 |
7.5 |
6 |
22 |
1/4 |
M6 |
SB201
201-8
202
202-10
203
203-11 |
PF203 |
0.27
0.27
0.26 |
|
SBPF 204-12
204 |
3/4
|
20 |
91 |
71 |
8 |
2 |
9 |
7 |
25 |
5/16 |
M8 |
SB204-12
204 |
PF204 |
0.3 |
|
SBPF 205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
95 |
76 |
9 |
2 |
9 |
7.5 |
27 |
5/16 |
M8 |
SB205-14
205-15
205
205-16 |
PF205 |
0.38 |
|
SBPF 206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
113 |
90 |
9 |
2.5 |
10.5 |
8 |
29 |
3/8 |
M10 |
SB206-18
206
206-19
206-20 |
PF206 |
0.62 |
|
SBPF 207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
122 |
100 |
10 |
2.5 |
10.5 |
9 |
32 |
3/8 |
M10 |
SB207-20
207-21
207-22
207
207-23 |
PF207 |
0.82 |
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing
No. |
Mass
(kg) | ||||||||
|
d |
L |
P |
A2 |
t |
N |
S |
B1 | |||||||
|
(in.) |
(mm) | |||||||||||||
|
SAPF 201
201-8
202
202-10
203
203-11 |
1/2
5/8
11/16 |
12
15
17
|
82 |
64 |
7 |
2 |
7.5 |
6.5 |
28.6 |
1/4 |
M6 |
SA201
201-8
202
202-10
203
203-11 |
PF203 |
0.29
0.29
0.28 |
|
SAPF 204-12
204 |
3/4
|
20 |
91 |
71 |
8 |
2 |
9 |
7 |
29.5 |
5/16 |
M8 |
SA204-12
204 |
PF204 |
0.31 |
|
SAPF 205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
95 |
76 |
9 |
2 |
9 |
7.5 |
30.5 |
5/16 |
M8 |
SA205-14
205-15
205
205-16 |
PF205 |
0.41 |
|
SAPF 206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
113 |
90 |
9 |
2.5 |
10.5 |
8 |
33.9 |
3/8 |
M10 |
SA206-18
206
206-19
206-20 |
PF206 |
0.67 |
|
SAPF 207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
122 |
100 |
10 |
2.5 |
10.5 |
9 |
37.5 |
3/8 |
M10 |
SA207-20
207-21
207-22
207
207-23 |
PF207 |
0.87 |
