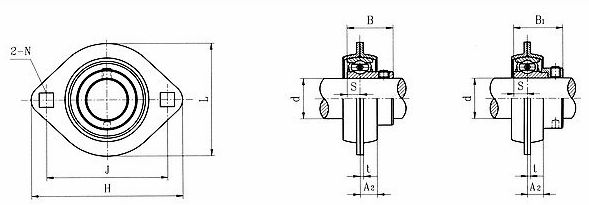

SBPFL200,SAPFL200系列
|
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing
No. |
Mass
(kg) | ||||||||||
|
d |
H |
J |
A2 |
L |
N |
t |
S |
B | |||||||
|
(in.) |
(mm) | ||||||||||||||
|
SBPFL201
201-8
202
202-10
203
203-11 |
1/2
5/8
11/16 |
12
15
17
|
81 |
63.5 |
7 |
59 |
7.5 |
2 |
6 |
22 |
M6 |
1/4 |
SB201
201-8
202
202-10
203
203-11 |
PFL203 |
0.2 |
|
SBPFL204-12
204 |
3/4
|
20 |
90 |
71.5 |
8 |
67 |
9 |
2 |
7 |
25 |
M8 |
5/16 |
SB204-12
204 |
PFL204 |
0.24 |
|
SBPFL205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
95 |
76 |
9 |
71 |
9 |
2 |
7.5 |
27 |
M8 |
5/16 |
SB205-14
205-15
205
205-16 |
PFL205 |
0.38 |
|
SBPFL206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
113 |
90.5 |
9 |
84 |
10.5 |
2.5 |
8 |
29 |
M10 |
3/8 |
SB206-18
206
206-19
206-20 |
PFL206 |
0.38 |
|
SBPFL207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
122 |
100 |
10 |
94 |
10.5 |
2.5 |
9 |
32 |
M10 |
3/8 |
SB207-20
207-21
207-22
207
207-23 |
PFL207 |
0.64 |
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing
No. |
Mass
(kg) | |||||||||
|
d |
H |
J |
A2 |
L |
N |
t |
S |
B1 | |||||||
|
(in.) |
(mm) | ||||||||||||||
|
SAPFL201
201-8
202
202-10
203
203-11 |
1/2
5/8
11/16 |
12
15
17
|
81 |
63.5 |
7 |
59 |
7.5 |
2 |
6.5 |
28.6 |
M6 |
1/4 |
SA201
201-8
202
202-10
203
203-11 |
PFL203 |
0.22 |
|
SAPFL204-12
204 |
3/4 |
20 |
90 |
71.5 |
8 |
67 |
9 |
2 |
7 |
29.5 |
M8 |
5/16 |
SA204-12
204 |
PFL204 |
0.25 |
|
SAPFL205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
95 |
76 |
9 |
71 |
9 |
2 |
7.5 |
30.5 |
M8 |
5/16 |
SA205-14
205-15
205
205-16 |
PFL205 |
0.32 |
|
SAPFL206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
113 |
90.5 |
9 |
84 |
10.5 |
2.5 |
8 |
33.9 |
M10 |
3/8 |
SA206-18
206
206-19
206-20 |
PFL206 |
0.41 |
|
SAPFL207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
122 |
100 |
10 |
94 |
10.5 |
2.5 |
9 |
37.5 |
M10 |
3/8 |
SA207-20
207-21
207-22
207
207-23 |
PFL207 |
0.69 |
