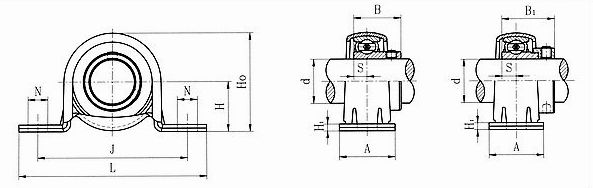

SBPP200,SAPP200系列
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing
No. |
Mass
(kg) | |||||||||
|
d |
H |
J |
L |
A |
N |
H1 |
H0 |
S |
B1 | ||||||
|
(in.) |
(mm) | ||||||||||||||
|
SAPP201
201-8
202
202-10
203
203-11 |
1/2
5/8
11/16 |
12
15
17
|
22.2 |
68 |
86 |
25 |
9.5 |
3 |
43.5 |
6.5 |
28.6 |
M8 |
SA201
201-8
202
202-10
203
203-11 |
PP203 |
0.20 |
|
SAPP204-12
204 |
3/4 |
20 |
25.4 |
76 |
98 |
32 |
9.5 |
3 |
50.2 |
7 |
29.5 |
M8 |
SA204-12
204 |
PP204 |
0.23 |
|
SAPP205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
28.6 |
86 |
108 |
32 |
11.5 |
4 |
56.4 |
7.5 |
30.5 |
M10 |
SA205-14
205-15
205
205-16 |
PP205 |
0.32 |
|
SAPP206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
33.3 |
95 |
117 |
38 |
11.5 |
4 |
66.1 |
8 |
33.9 |
M10 |
SA206-18
206
206-19
206-20 |
PP206 |
0.47 |
|
SAPP207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
39.7 |
106 |
129 |
42 |
11.5 |
4 |
77.7 |
9 |
37.5 |
M10 |
SA207-20
207-21
207-22
207
207-23 |
PP207 |
0.60 |
