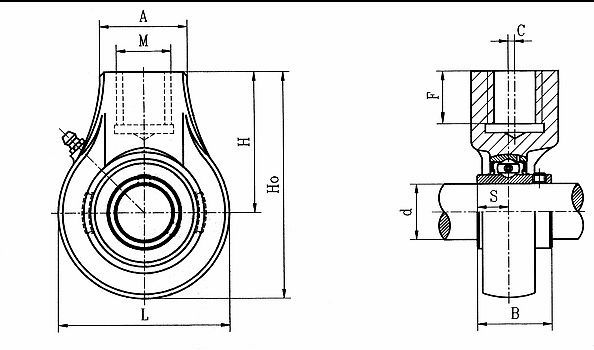

UCHA200系列
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bearing
No. |
Housing
No. |
Mass
(kg) | |||||||||
|
d |
H0 |
L |
C |
H |
A |
F |
M |
B |
S
| |||||
|
(in.) |
(mm) | |||||||||||||
|
UCHA203
203-11 |
11/16 |
17
|
88.5 |
57 |
0 |
60 |
38 |
19 |
G3/4 |
27.4 |
11.5 |
UC203
203-11 |
HA203 |
0.6 |
|
UCHA204-12
204 |
3/4
|
20 |
96 |
64 |
0 |
64 |
40 |
19 |
G3/4 |
31 |
12.7 |
UC204-12
204 |
HA204 |
0.7 |
|
UCHA205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
103 |
78 |
0 |
64 |
40 |
19 |
G3/4 |
34 |
14.3 |
UC205-14
205-15
205
205-16 |
HA205 |
0.88 |
|
UCHA206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
103 |
78 |
0 |
64 |
40 |
19 |
G3/4 |
38.1 |
15.9 |
UC206-18
206
206-19
206-20 |
HA206 |
1.0 |
|
UCHA207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
116 |
92 |
0 |
70 |
40 |
19 |
G3/4 |
42.9 |
17.5 |
UC207-20
207-21
207-22
207
207-23 |
HA207 |
1.2 |
|
UCHA208-24
208-25
208 |
1-1/2
1-9/16
|
40 |
121 |
96 |
2 |
73 |
40 |
19 |
G3/4 |
49.2 |
19 |
UC208-24
208-25
208 |
HA208 |
1.3 |
|
UCHA209-26
209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
136 |
108 |
5 |
82 |
48 |
21 |
G1 |
49.2 |
19 |
UC209-26
209-27
209-28
209 |
HA209 |
1.8 |
|
UCHA210-30
210-31
210
210-32 |
1-7/8
1-15/16
2 |
50 |
140.5 |
115 |
5 |
83 |
48 |
21 |
G1 |
51.6 |
19 |
UC210-30
210-31
210
210-32 |
HA210 |
2.1 |
|
UCHA211-32
211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
150 |
126 |
7 |
87 |
60 |
24 |
G1-1/4 |
55.6 |
22.2 |
UC211-32
211-34
211
211-35 |
HA211 |
2.8 |
|
UCHA212-36
212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
173 |
142 |
9 |
102 |
60 |
28 |
G1-1/4 |
65.1 |
25.4 |
UC212-36
212
212-38
212-39 |
HA212 |
3.9 |
|
UCHA213-40
213 |
2-1/2
|
65 |
200 |
166 |
9.5 |
117 |
70 |
32 |
G1-1/2 |
65.1 |
25.4 |
UC213-40
213 |
HA213 |
5.9 |
|
UCHA214-44
214 |
2-3/4
|
70 |
200 |
166 |
9.5 |
117 |
70 |
32 |
G1-1/2 |
74.6 |
30.2 |
UC214-44
214 |
HA214 |
5.9 |
|
UCHA215-47
215
215-48 |
2-15/16
2 |
75
|
200 |
166 |
9.5 |
117 |
70 |
32 |
G1-1/2 |
77.8 |
33.2 |
UC215-47
215
215-48 |
HA215 |
5.9 |
