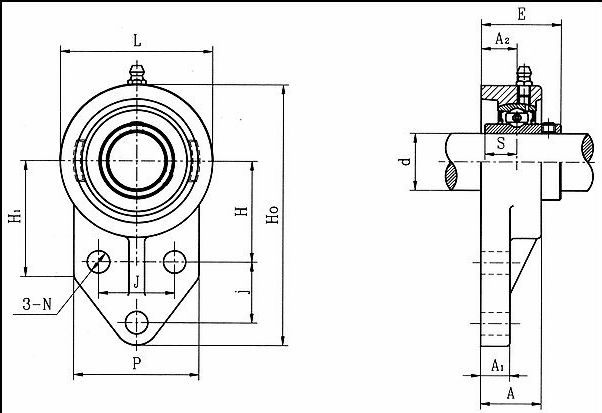

UCFB200系列

Unit No.	Shaft Dia.		Dimensions(mm)													Bolt Size	Bearing No.	Housing No.	Mass (kg)
	d		H₀	L	H₁	P	H	j	J	A	A₁	A₂	N	E	S
	(in.)	(mm)	H₀	L	H₁	P	H	j	J	A	A₁	A₂	N	E	S
UCFB202 202-10 203 203-11	5/8 11/16	15 17	104	55	50	49	40	27	30	23.5	10	14	10	29.9	11.5	M8	UC202 202-10 203 203-11	FB203	0.42 0.41
UCFB204-12 204	3/4	20	109	60	52	52	42	27	32	25.5	11	15	10	33.3	12.7	M8	UC204-12 204	FB204	0.62
UCFB205-14 205-15 205 205-16	7/8 15/16 1	25	116	68	52	56	45	27	34	27	13	16	10	35.7	14.3	M8	UC205-14 205-15 205 205-16	FB205	0.69
UCFB206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	132	80	55	65	50	29	40	31	13	18	10	40.2	15.9	M8	UC206-18 206 206-19 206-20	FB206	0.93
UCFB207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	144	90	62	70	55	32	46	33	14	19	10	44.4	17.5	M8	UC207-20 207-21 207-22 207 207-23	FB207	1.3
UCFB208-24 208-25 208	1-1/2 1-9/16	40	164	100	72	78	60	41	50	35	17	21	12	51.2	19	M10	UC208-24 208-25 208	FB208	1.8
UCFB209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	175	108	76	80	65	43	54	38	16	22	12	52.2	19	M10	UC209-26 209-27 209-28 209	FB209	2.0
UCFB210-30 210-31 210 210-32	1-7/8 1-15/16 2	50	184	114	82	86	68	46	58	39	16	22	12	54.6	19	M10	UC210-30 210-31 210 210-32	FB210	2.3
UCFB211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	207	128	86	90	78	50	62	42.5	18	25	14	58.4	22.2	M12	UC211-32 211-34 211 211-35	FB211
UCFB212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	224	140	90	94	84	55	66	47.5	19	29	14	68.7	25.4	M12	UC212-36 212 212-38 212-39	FB212
UCFB213-40 213	2-1/2	65	244	152	95	102	92	60	70	49	20	30	14	69.7	25.4	M12	UC213-40 213	FB213
