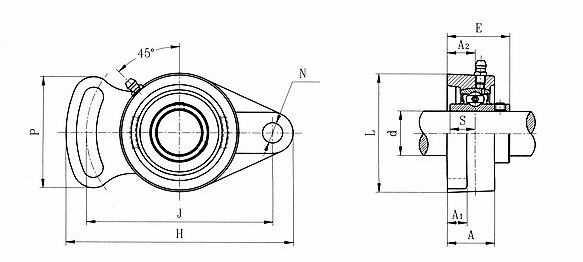

UCFA200系列
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing
No. |
Mass
(kg) | ||||||||||
|
d |
H |
J |
L |
P |
A1 |
A2 |
A |
N |
E |
S | ||||||
|
(in.) |
(mm) | |||||||||||||||
|
UCFA202
202-10
203
203-11 |
5/8
11/16 |
15
17 |
95 |
75 |
57 |
47 |
9 |
13 |
22 |
10 |
28.9 |
11.5 |
M8 |
UC202
202-10
203
203-11 |
FA203 |
0.37
0.36 |
|
UCFA204-12
204 |
3/4
|
20 |
98 |
78 |
59 |
50 |
11 |
13.74 |
24 |
10 |
32.04 |
12.7 |
M8 |
UC204-12
204 |
FA204 |
0.45 |
|
UCFA205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
122 |
96 |
70 |
64 |
13 |
16 |
27 |
12 |
35.7 |
14.3 |
M8 |
UC205-14
205-15
205
205-16 |
FA205 |
0.69 |
|
UCFA206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
141 |
115 |
80 |
68 |
14 |
18 |
30.5 |
12 |
40.2 |
15.9 |
M8 |
UC206-18
206
206-19
206-20 |
FA206 |
1.0 |
|
UCFA207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
155 |
128 |
92 |
75 |
15 |
19 |
33 |
13 |
44.4 |
17.5 |
M8 |
UC207-20
207-21
207-22
207
207-23 |
FA207 |
1.5 |
|
UCFA208-24
208-25
208 |
1-1/2
1-9/16
|
40 |
171 |
144 |
105 |
84 |
14 |
21 |
38 |
13 |
51.2 |
19 |
M10 |
UC208-24
208-25
208 |
FA208 |
1.8 |
|
UCFA209-26
209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
178 |
146 |
108 |
88 |
16 |
22 |
38 |
16 |
52.2 |
19 |
M10 |
UC209-26
209-27
209-28
209 |
FA209 |
2.1 |
|
UCFA210-30
210-31
210
210-32 |
1-7/8
1-15/16
2 |
50 |
188 |
155 |
114 |
92 |
16 |
22 |
39 |
16 |
54.6 |
19 |
M10 |
UC210-30
210-31
210
210-32 |
FA210 |
2.3 |
|
UCFA211-32
211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
216 |
182 |
128 |
102 |
18 |
25 |
42.5 |
16 |
58.4 |
22.2 |
M12 |
UC211-32
211-34
211
211-35 |
FA211 |
3.6 |
|
UCFA212-36
212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
238 |
202 |
140 |
122 |
19 |
29 |
47.5 |
18 |
68.7 |
25.4 |
M12 |
UC212-36
212
212-38
212-39 |
FA212 |
|
|
UCFA213-40
213 |
2-1/2
|
65 |
248 |
210 |
152 |
126 |
20 |
30 |
49 |
18 |
69.7 |
25.4 |
M12 |
UC213-40
213 |
FA213 |
|
