UCPH200系列

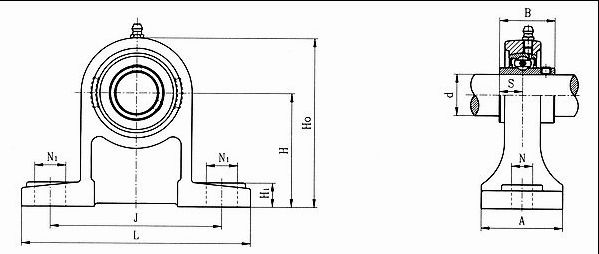

Unit No.	Shaft Dia.		Dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass (kg)
	d		H	J	L	A	N	N₁	H₁	H₀	S	B
	(in.)	(mm)	H	J	L	A	N	N₁	H₁	H₀	S	B
UCPH202 202-10 203 203-11	5/8 11/16	15 17	70	95	127	38	12	16	13	97	11.5	27.4	M10	UC202 202-10 203 203-11	PH203	0.78 0.80
UCPH204-12 204	3/4	20	70	95	127	40	12	16	13	101	12.7	31	M10	UC204-12 204	PH204	0.94
UCPH205-14 205-15 205 205-16	7/8 15/16 1	25	80	105	140	50	13	19	16	114	14.3	34	M10	UC205-14 205-15 205 205-16	PH205	1.20
UCPH206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	90	121	165	50	17	21	18	130	15.9	38.1	M12	UC206-18 206 206-19 206-20	PH206	1.60
UCPH207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	95	127	167	60	17	21	19	140	17.5	42.9	M12	UC207-20 207-21 207-22 207 207-23	PH207	2.10
UCPH208-24 208-25 208	1-1/2 1-9/16	40	100	137	184	66	17	21	20	150	19	49.2	M12	UC208-24 208-25 208	PH208	2.70
UCPH209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	105	146	190	70	17	21	20	158	19	49.2	M12	UC209-26 209-27 209-28 209	PH209	3.10
UCPH210-30 210-31 210 210-32	1-7/8 1-15/16 2	50	110	159	204	70	19	22	22	165	19	51.6	M16	UC210-30 210-31 210 210-32	PH210	3.50
UCPH211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	120	171	217	75	19	22	23	181	22.2	55.6	M16	UC211-32 211-34 211 211-35	PH211	4.07
UCPH212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	130	186	236	80	19	22	24	197	25.4	65.1	M16	UC212-36 212 212-38 212-39	PH212
UCPH213-40 213	2-1/2	65	140	203	258	85	23	28	26	213	25.4	65.1	M20	UC213-40 213	PH213
UCPH214-44 214	2-3/4	70	150	210	266	90	23	28	27	227	30.2	74.6	M20	UC214-44 214	PH214
UCPH215-47 215 215-48	2-15/16 3	75	160	217	274	95	23	28	28	240	33.3	77.8	M20	UC215-47 215 215-48	PH215
UCPH216		80	170	232	290	100	24	28	30	256	33.3	82.6	M20	UC216	PH216
