UCT300系列

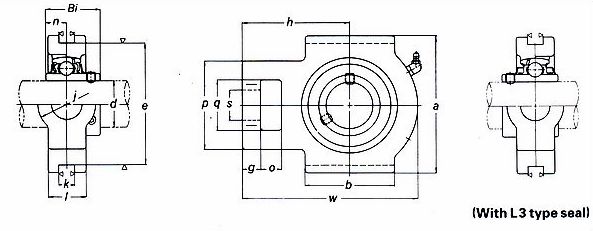

UNIT NO.	SHART DIA d		BEARIG NO.	DIMENSIONS mm															Housing No.	WEIGHT kg
UNIT NO.	inch	mm	BEARIG NO.	o	g	p	q	s	b	k	e	a	w	j	i	h	Bi	n	Housing No.	WEIGHT kg
UCT 305-14 305-15 305 305-16	7/8 15/16 1	25	UC 305-14 305-15 305 305-16	16	12	62	36	26	65	12	80	89	122	36	26	76	38	15	T305	1.4
UCT 306-18 306 306-19	1 1/8 1 3/16	30	UC 306-18 306 306-19	18	14	70	41	28	74	16	90	100	137	41	28	85	43	17	T306	1.8
UCT 307-20 307-21 307-22 307 307-23	1 1/4 1 5/16 1 3/8 1 7/16	35	UC 307-20 307-21 307-22 307 307-23	20	15	75	45	30	80	16	100	111	150	45	32	94	48	19	T307	2.4
UCT 308-24 308-25 308	1 1/2 1 9/16	40	UC 308-24 308-25 308	22	17	83	50	32	89	18	112	124	162	50	34	100	52	19	T308	3.0
UCT 309-26 309-27 309-28 309	1 5/8 1 11/16 1 3/4	45	UC 309-26 309-27 309-28 309	24	18	90	55	34	97	18	125	138	178	55	38	110	57	22	T309	4.2
UCT 310-30 310-31 310	1 7/8 1 15/16	50	UC 310-30 310-31 310	27	20	98	61	37	106	20	140	151	191	61	40	117	61	22	T310	5.0
UCT 311-32 311-34 311 311-35	2 2 1/8 2 3/16	55	UC 311-32 311-34 311 311-35	29	21	105	66	39	115	22	150	163	207	66	44	127	66	25	T311	6.2
UCT 312-36 312 312-38 312-39	2 1/4 2 3/8 2 7/16	60	UC 312-36 312 312-38 312-39	31	23	113	71	41	123	22	160	178	220	71	46	135	71	26	T312	7.7
UCT 313-40 313	2 1/2	65	UC 313-40 313	32	25	116	70	43	134	26	170	190	238	80	50	146	75	30	T313	9.5
UCT 314-44 314	2 3/4	70	UC 314-44 314	36	25	130	85	46	140	26	180	202	252	90	52	155	78	33	T314	11.2
UCT 315 315-48	3	75	UC 315 315-48	36	25	132	85	46	150	26	192	216	262	90	55	160	82	32	T315	12.5
UCT 316-50 316	3 1/8	80	UC 316-50 316	42	28	150	98	53	160	30	204	230	282	102	60	174	86	34	T316	16.2
UCT 317-52 317	3 1/4	85	UC 317-52 317	42	30	152	98	53	170	32	214	240	298	102	64	183	96	40	T317	19.1
UCT 318-56 318	3 1/2	90	UC 318-56 318	46	30	160	106	57	175	32	228	255	312	110	66	192	96	40	T318	21.7
UCT 319 319-60	3 3/4	95	UC 319 319-60	46	31	165	106	57	180	35	240	270	322	110	72	197	103	41	T319	24.9
UCT 320 320-64	4	100	UC 320 320-64	48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	T320	30.6
UCT 321		105	UC 321	48	32	175	115	59	200	35	260	290	345	120	75	210	112	44	T321	31.0
UCT 322 322-71	4 7/16	110	UC 322 322-71	52	38	185	125	65	215	38	285	320	385	130	80	235	117	46	T322	39.5
UCT 324 324-79	4 15/16	120	UC 324 324-79	60	42	210	140	70	230	45	320	355	432	140	90	267	126	51	T324	53.9
UCT 326 326-82	5 1/8	130	UC 326 326-82	65	45	220	150	75	240	50	350	385	465	150	100	285	135	54	T326	69.1
UCT 328-88 328	5 1/2	140	UC 328-88 328	70	50	230	160	80	255	50	380	415	515	155	100	315	145	59	T328	85.6
