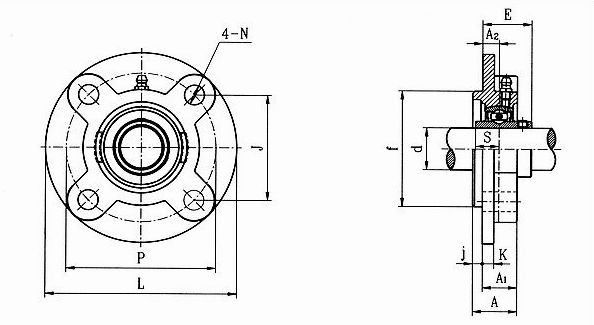

UCFC200系列

Unit No.	Shaft Dia.		Dimensions(mm)												Bolt Size	Bearing No.	Housing No.	Mass (kg)
	d		L	P	A₂	A₁	A	j	K	N	J	f	S	E
	(in.)	(mm)	L	P	A₂	A₁	A	j	K	N	J	f	S	E
UCFC202 202-10 203 203-11	5/8 11/16	15 17	90	70	10	19	23	4	5	10	49.5	55	11.5	25.9	M8	UC202 202-10 203 203-11	FC203	0.56 0.54
UCFC204-12 204	3/4	20	100	78	10	20.5	25.5	5	6	11.5	55.1	62	12.7	28.3	M10	UC204-12 204	FC204	0.76
UCFC205-14 205-15 205 205-16	7/8 15/16 1	25	115	90	10	21	27	6	7	12	63.6	70	14.3	29.7	M10	UC205-14 205-15 205 205-16	FC205	0.96
UCFC206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	125	100	10	23	31	8	8	12	70.7	80	15.9	32.2	M10	UC206-18 206 206-19 206-20	FC206	1.37
UCFC207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	135	110	11	26	34	8	9	14	77.8	90	17.5	36.4	M12	UC207-20 207-21 207-22 207 207-23	FC207	1.70
UCFC208-24 208-25 208	1-1/2 1-9/16	40	145	120	11	26	36	10	9	14	84.8	100	19	41.2	M12	UC208-24 208-25 208	FC208	2.0
UCFC209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	160	132	10	26	38	12	10	16	93.3	105	19	40.2	M14	UC209-26 209-27 209-28 209	FC209	2.7
UCFC210-30 210-31 210	1-7/8 1-15/16	50	165	138	10	28	40	12	14	16	97.6	110	19	42.6	M14	UC210-30 210-31 210	FC210	2.9
UCFC211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	185	150	13	30	42	12	13	19	106.1	125	22.2	46.4	M16	UC211-32 211-34 211 211-35	FC211	4.2
UCFC212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	195	160	17	36	48	12	15	19	113.1	135	25.4	56.7	M16	UC212-36 212 212-38 212-39	FC212	4.94
UCFC213-40 213	2-1/2	65	205	170	16	35	49	14	15	19	120.2	145	25.4	55.7	M16	UC213-40 213	FC213	5.7
UCFC214-44 214	2-3/4	70	215	177	17	38	52	14	16	19	125.1	150	30.2	61.4	M16	UC214-44 214	FC214	6.8
UCFC215 215-48	3	75	220	184	18	39	55	16	17	19	130.1	160	33.3	62.5	M16	UC215 215-48	FC215	7.2
UCFC216		80	240	200	18	42	58	16	18	23	141.4	170	33.3	67.3	M20	UC216	FC216	8.7
UCFC217-52 217	3-1/4	85	250	208	18	45	63	18	20	23	147.1	180	34.1	69.6	M20	UC217-52 217	FC217	10.3
UCFC218-56 218	3-1/2	90	265	220	22	50	68	18	20	23	155.5	190	39.7	78.3	M20	UC218-56 218	FC218	13.5
