UCFL300系列

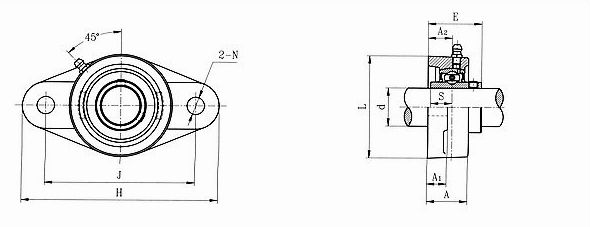

Unit No.	Shaft Dia.		Dimensions(mm)									Bolt Size	Bearing No.	Housing No.	Mass (kg)
	d		H	J	L	A₂	A₁	A	E	N	S
	(in.)	(mm)	H	J	L	A₂	A₁	A	E	N	S
UCFL305-14 305-15 305 305-16	7/8 15/16 1	25	150	113	80	16	13	29	39	19	15	M16	UC305-14 305-15 305 305-16	FL305	1.1
UCFL306-18 306 306-19	1-1/8 1-3/16	30	180	134	90	18	15	32	44	23	17	M20	UC306-18 306 306-19	FL306	1.5
UCFL307-20 307-21 307-22 307	1-1/4 1-5/16 1-3/8	35	185	141	100	20	16	36	49	23	19	M20	UC307-20 307-21 307-22 307	FL307	1.8
UCFL308-24 308-25 308	1-1/2 1-9/16	40	200	158	112	23	17	40	56	23	19	M20	UC308-24 308-25 308	FL308	2.5
UCFL309-26 309-27 309-28 309	1-5/8 1-11/16 1-3/4	45	230	177	125	25	18	44	60	25	22	M22	UC309-26 309-27 309-28 309	FL309	3.4
UCFL310-30 310-31 310	1-7/8 1-15/16	50	240	187	140	28	19	48	67	25	22	M22	UC310-30 310-31 310	FL310	4.4
UCFL311-32 311-34 311 311-35	2 2-1/8 2-3/16	55	250	198	150	30	20	52	71	25	25	M22	UC311-32 311-34 311 311-35	FL311	5.1
UCFL312-36 312 312-38 312-39	2-1/4 2-3/8 2-7/16	60	270	212	160	33	22	56	78	31	26	M27	UC312-36 312 312-38 312-39	FL312	6.1
UCFL313-40 313	2-1/2	65	295	240	175	33	25	58	78	31	30	M27	UC313-40 313	FL313	7.8
UCFL314-44 314	2-3/4	70	315	250	185	36	28	61	83	35	31	M30	UC314-44 314	FL314	9.8
UCFL315 315-48	3	75	320	260	195	39	30	66	89	35	32	M30	UC315 315-48	FL315	11.3
UCFL316		80	355	285	210	38	32	68	90	38	34	M33	UC316	FL316	14.3
UCFL317-52 317	3-1/4	85	370	300	220	44	32	74	100	38	40	M33	UC317-52 317	FL317	16.0
UCFL318-56 318	3-1/2	90	385	315	235	44	36	76	100	38	40	M33	UC318-56 318	FL318	19.1
UCFL319 319-60	3-3/4	95	405	330	250	59	40	94	121	41	41	M36	UC319 319-60	FL319	24.6
UCFL320 320-64	4	100	440	360	270	59	40	94	125	44	42	M39	UC320 320-64	FL320	30.8
