UCF300系列

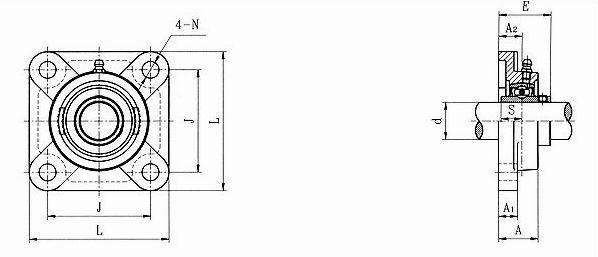

Unit No.	Shaft Dia.		Dimensions(mm)								Bolt Size	Bearing No.	Housing No.	Mass (kg)
	d		L	J	A₂	A₁	A	E	N	S
	(in.)	(mm)	L	J	A₂	A₁	A	E	N	S
UCF305-14 305-15 305 305-16	7/8 15/16 1	25	108	80	16	13	29	39	16	15	M14	UC305-14 305-15 305 305-16	F305	1.2
UCF306-18 306 306-19	1-1/8 1-3/16	30	125	95	18	15	32	44	16	17	M14	UC306-18 306 306-19	F306	1.8
UCF307-20 307-21 307-22 307	1-1/4 1-5/16 1-3/8	35	135	100	20	16	36	49	19	19	M16	UC307-20 307-21 307-22 307	F307	2.2
UCF308-24 308-25 308	1-1/2 1-9/16	40	150	112	23	17	40	56	19	19	M16	UC308-24 308-25 308	F308	2.9
UCF309-26 309-27 309-28 309	1-5/8 1-11/16 1-3/4	45	160	125	25	18	44	60	19	22	M16	UC309-26 309-27 309-28 309	F309	3.5
UCF310-30 310-31 310	1-7/8 1-15/16	50	175	132	28	20	48	67	23	22	M20	UC310-30 310-31 310	F310	4.8
UCF311-32 311-34 311 311-35	2 2-1/8 2-3/16	55	185	140	30	20	52	71	23	25	M20	UC311-32 311-34 311 311-35	F311	5.6
UCF312-36 312 312-38 312-39	2-1/4 2-3/8 2-7/16	60	193	150	33	22	56	78	23	26	M20	UC312-36 312 312-38 312-39	F312	6.7
UCF313-40 313	2-1/2	65	208	166	33	22	58	78	23	30	M20	UC313-40 313	F313	7.8
UCF314-44 314	2-3/4	70	226	178	36	25	61	81	25	31	M22	UC314-44 314	F314	10.1
UCF315 315-48	3	75	236	184	39	25	66	89	25	32	M22	UC315 315-48	F315	11.1
UCF316		80	250	196	38	27	68	90	31	34	M27	UC316	F316	12.8
UCF317-52 317	3-1/4	85	260	204	44	27	74	100	31	40	M27	UC317-52 317	F317	15.4
UCF318-56 318	3-1/2	90	280	216	44	30	76	100	35	40	M30	UC318-56 318	F318	19.0
UCF319 319-60	3-3/4	95	290	228	59	30	94	121	35	41	M30	UC319 319-60	F319	20.6
UCF320 320-64	4	100	310	242	59	32	94	125	38	42	M33	UC320 320-64	F320	25.7
