UCP300系列

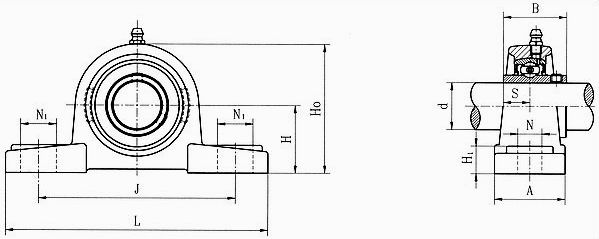

Unit No.	Shaft Dia.		Dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass (kg)
	d		H	L	J	A	N	N₁	H₁	H₀	S	B
	(in.)	(mm)	H	L	J	A	N	N₁	H₁	H₀	S	B
UCP305-14 305-15 305 305-16	7/8 15/16 1	25	45	173	132	45	17	20	15	85	15	38	M14	UC305-14 305-15 305 305-16	P305	1.4
UCP306-18 306 306-19	1-1/8 1-3/16	30	50	180	140	50	17	20	15	95	17	43	M14	UC306-18 306 306-19	P306	1.8
UCP307-20 307-21 307-22 307	1-1/4 1-5/16 1-3/8	35	56	210	160	56	17	25	19	106	19	48	M14	UC307-20 307-21 307-22 307	P307	2.8
UCP308-24 308-25 308	1-1/2 1-9/16	40	60	218	170	62	18	25	19	116	19	52	M14	UC308-24 308-25 308	P308	3.0
UCP309-26 309-27 309-28 309	1-5/8 1-11/16 1-3/4	45	67	244	190	66	20	26	23	129	22	57	M16	UC309-26 309-27 309-28 309	P309	4.1
UCP310-30 310-31 310	1-7/8 1-15/16	50	75	271	212	74	20	30	26	143	22	61	M16	UC310-30 310-31 310	P310	5.8
UCP311-32 311-34 311 311-35	2 2-1/8 2-3/16	55	80	300	236	80	20	32	29	154	25	66	M16	UC311-32 311-34 311 311-35	P311	7.4
UCP312-36 312 312-38 312-39	2-1/4 2-3/8 2-7/16	60	85	325	250	85	23	35	31	164	26	71	M20	UC312-36 312 312-38 312-39	P312	9.4
UCP313-40 313	2-1/2	65	90	335	260	90	25	38	33	176	30	75	M20	UC313-40 313	P313	10
UCP314-44 314	2-3/4	70	95	360	280	93	27	40	34	187	31	78	M22	UC314-44 314	P314	12
UCP315 315-48	3	75	100	380	290	100	27	40	35	198	32	82	M22	UC315 315-48	P315	14
UCP316		80	106	400	300	105	27	40	37	210	34	86	M22	UC316	P316	18
UCP317-52 317	3-1/4	85	112	420	320	110	33	45	40	220	40	96	M27	UC317-52 317	P317	20
UCP318-56 318	3-1/2	90	118	430	330	110	33	45	40	234	40	96	M27	UC318-56 318	P318	24
UCP319 319-60	3-3/4	95	125	470	360	120	36	50	46	248	41	103	M30	UC319 319-60	P319	29
UCP320 320-64	4	100	140	490	380	120	36	50	50	275	42	108	M30	UC320 320-64	P320	35
