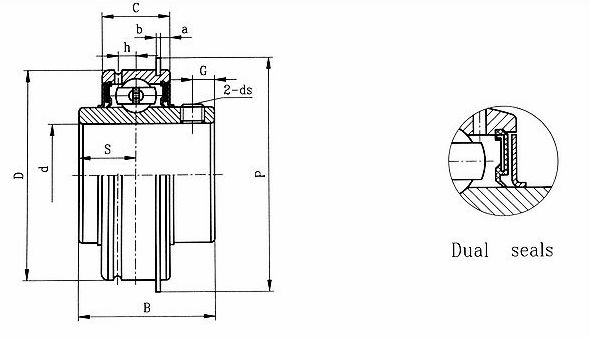

SER series
|
Bearing
No. |
Shaft Dia. |
Dimensions(mm) |
Basic load rating
(N) |
Mass
(kg) | |||||||||||||
|
d |
D |
B |
C |
S |
a |
b |
p |
G |
h |
ds |
Dynamic
Cr |
Static
Cor | |||||
|
(in.) |
(mm) | ||||||||||||||||
|
SER202
202-10
203
203-11 |
5/8
11/16 |
15
17
|
47
1.8504 |
31
1.2205 |
15.9
0.6260 |
10.3
0.4055 |
2.38
0.0937 |
1.07
0.0421 |
52.7
2.0748 |
4.7
0.1850 |
4.4
0.1732 |
M6X1
1/4-28UNF |
12800 |
6650 |
0.17 | ||
|
SER204-12
204 |
3/4
|
20 |
47
1.8504 |
31
1.2205 |
15.9
0.6260 |
10.3
0.4055 |
2.38
0.0937 |
1.07
0.0421 |
52.5
2.0748 |
4.7
0.1850 |
4.4
0.1732 |
M6X1
1/4-28UNF |
12800 |
6650 |
0.24 | ||
|
SER205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
52
2.0472 |
34.9
1.3386 |
19
0.7480 |
13.08
0.5150 |
2.38
0.0937 |
1.07
0.0421 |
57.9
2.2795 |
5.5
0.2165 |
4.5
0.1772 |
M6X1
1/4-28UNF |
14000 |
7880 |
0.27 | ||
|
SER206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
62
2.4409 |
38.1
1.5000 |
22.2
0.8740 |
15.9
0.6260 |
3.18
0.1252 |
1.65
0.0650 |
67.7
2.6654 |
5.5
0.2165 |
5.3
0.2087 |
M6X1
1/4-28UNF |
19500 |
11200 |
0.39 | ||
|
SER207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
72
2.8346 |
42.9
1.6890 |
23.8
0.9370 |
17.5
0.6890 |
3.18
0.1252 |
1.65
0.0650 |
78.6
3.0945 |
6.5
0.2559 |
5.8
0.2283 |
M8X1
5/16-24UNF |
25700 |
15200 |
0.61 | ||
|
SER208-24
208-25
208 |
1-1/2
1-9/16
|
40 |
80
3.1496 |
49.2
1.9370 |
27.8
1.0945 |
19
0.7480 |
3.18
0.1252 |
1.65
0.0650 |
86.6
3.4094 |
8
0.3150 |
6.3
0.2480 |
M8X1
5/16-24UNF |
29600 |
18200 |
0.81 | ||
|
SER209-26
209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
85
3.3465 |
49.2
1.9370 |
27.8
1.0945 |
19
0.7480 |
3.18
0.1252 |
1.65
0.0650 |
91.6
3.6063 |
8
0.3150 |
7.5
0.2953 |
M8X1
5/16-24UNF |
31850 |
20800 |
0.90 | ||
|
SER210-30
210-31
210 |
1-7/8
1-15/16
|
50 |
90
3.5433 |
51.6
2.0315 |
28.6
1.1260 |
19
0.7480 |
3.18
0.1252 |
2.41
0.0949 |
96.5
3.7992 |
9
0.3543 |
6.8
0.2677 |
M10X1.25
3/8-24UNF |
35100 |
23200 |
0.96 | ||
|
SER211-32
211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
100
3.9370 |
55.6
2.1890 |
30.2
1.1890 |
22.2
0.8740 |
3.18
0.1252 |
2.41
0.0949 |
106.5
4.1929 |
9
0.3543 |
7.6
0.2992 |
M10X1.25
3/8-24UNF |
43550 |
29200 |
1.41 | ||
|
SER212-36
212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
110
4.3307 |
65.1
2.5630 |
31.8
1.2520 |
25.4
1.0000 |
3.18
0.1252 |
2.41
0.0949 |
116.6
4.5906 |
10.5
0.4134 |
8.4
0.3307 |
M10X1.25
3/8-24UNF |
47800 |
32800 |
1.95 | ||
|
SER214-40
214-43
214 |
2-1/2
2-11/16
|
70 |
125
4.9213 |
74.6
2.9370 |
35
1.3780 |
30.2
1.1890 |
3.96
0.1559 |
2.77
0.1091 |
134.7
5.3031 |
12
0.4724 |
9
0.3543 |
M12X1.25
7/16-20UNF |
60800 |
45000 |
2.52 | ||
|
SER215-46
215-47
215 |
2-7/8
2-15/16
|
75 |
130
5.1181 |
77.8
3.0630 |
38.1
1.5000 |
33.3
1.3110 |
3.96
0.1559 |
2.77
0.1091 |
139.7
5.5000 |
12
0.4724 |
9.5
0.3740s |
M12X1.25
7/16-20UNF |
66000 |
49500 |
2.89 | ||
