SB series

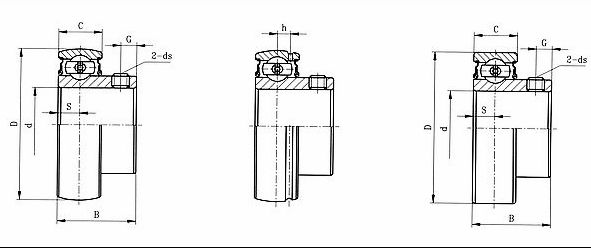

Bearing No.	Shaft Dia.		Dimensions(mm)							Basic load ratings (N)		Mass (kg)
	d		D	B	C	S	h	G	ds	Dynamic Cr	Static Cor
	(in.)	(mm)	D	B	C	S	h	G	ds	Dynamic Cr	Static Cor
SB201 201-8 202 202-10	1/2 5/8	12 15	40 1.5748	22 0.8661	12 0.4724	6 0.2362	3.6 0.1417	4 0.1575	M5X0.8 10#-32UNF	9550	4780	0.10 0.09 0.10 0.08
SB204-12 204	3/4	20	47 1.8504	25 0.9843	14 0.5512	7 0.2756	4 0.1575	5 0.1969	M6X1 1/4-28UNF	12800	6650	0.15 0.13
SB205-14 205-15 205 205-16	7/8 15/16 1	25	52 2.0472	27 1.0630	15 0.5906	7.5 0.2953	4.3 0.1693	5.5 0.2165	M6X1 1/4-28UNF	14000	7880	0.18 0.17 0.18 0.16
SB206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	62 2.4409	30 1.1811	16 0.6299	8 0.3150	5 0.1969	6 0.2362	M6X1 1/4-28UNF	19500	11200	0.28 0.26 0.25 0.24
SB207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	72 2.8346	32 1.2598	17 0.6693	8.5 0.3346	5.7 0.2244	6 0.2362	M6X1 1/4-28UNF	25700	15200	0.43 0.41 0.38 0.42 0.37
SB208-24 208-25 208	1-1/2 1-9/16	40	80 3.1496	34 1.3386	18 0.7087	9 0.3543	6.2 0.2441	7 0.2756	M8X1 5/16-24UNF	29600	18200	0.60 0.58 0.60
SB209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	85 3.3465	41.2 1.6220	19 0.7480	10.2 0.4016	6.8 0.2677	8.2 0.3228	M8X1 5/16-24UNF	31850	20800	0.8
SB210-30 210-31 210	1-7/8 1-15/16	50	90 3.5433	43.5 1.7126	20 0.7874	10.9 0.4291	6.5 0.2559	9.2 0.3622	M8X1 5/16-24UNF	35100	23200	0.8
SB211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	100 3.9370	45.3 1.7835	23 0.9055	11.8 0.4646	7.2 0.2835	9.8 0.3858	M8X1 5/16-24UNF	43550	29200	1.1
SB212-36 212 212-39	2-1/4 2-7/16	60	110 4.3307	53.7 2.1142	24 0.9449	14.9 0.5866	8 0.3150	9.8 0.3858	M10X1.25 3/8-24UNF	47800	32800	1.3
