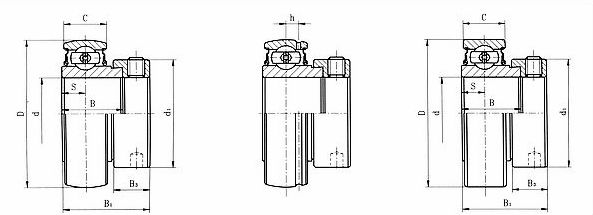

SA series

Bearing No.	Shaft Dia.		Dimensions(mm)								Basic load ratings (N)		Mass (kg)
	d		D	C	B	B₁	S	h	B₃	d1	Dynamic Cr	Static Cor
	(in.)	(mm)	D	C	B	B₁	S	h	B₃	d1	Dynamic Cr	Static Cor
SA201 201-8 202 202-10 203 203-11	1/2 5/8 11/16	12 15 17	40 1.5748	13 0.5118	19.1 0.7520	28.6 1.1260	6.5 0.2559	3.6 0.1417	13.5 0.5315	28.6 1.1260	9550	4780	0.14 0.14 0.13 0.13 0.13 0.13
CSA104-12	3/4		42 1.6535	12 0.4724	16.14 0.6354	26.42 1.0402	6 0.2362	-	13.2 0.5197	33 1.2992	9380	5000	0.12
SA204-12 204	3/4	20	47 1.8504	47 0.5512	21.4 0.8425	30.9 1.2165	7.5 0.2953	4 0.1575	13.5 0.5315	33.3 1.3110	12800	6650	0.18 0.15
SA205-14 205-15 205 205-16	7/8 15/16 1	25	52 2.0472	15 0.5906	21.4 0.8425	30.9 1.2165	7.5 0.2953	4.3 0.1693	13.5 0.5315	38.1 1.5000	14000	7880	0.21 0.19 0.19 0.18
SA206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	62 2.4409	16 0.6299	23.8 0.9370	35.7 1.4055	9 0.3543	5 0.1969	15.9 0.6260	44.5 1.7520	19500	11200	0.35 0.33 0.31 0.29
SA207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	72 2.8346	17 0.6693	25.4 1.0000	38.9 1.5315	9.5 0.3740	5.7 0.2244	17.5 0.6890	55.6 2.1890	25700	15200	0.56 0.53 0.51 0.50 0.48
SA208-24 208-25 208	1-1/2 1-9/16	40	80 3.1496	18 0.7087	30.2 1.1890	43.7 1.7205	11 0.4331	6.2 0.2441	18.3 0.7205	60.3 2.3740	29600	18200	0.68 0.67 0.65
SA209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	85 3.3456	19 0.7480	30.2 1.1890	43.6 1.7165	11 0.4331	6.8 0.2677	18.3 0.7205	63.5 2.5000	31850	20800	0.76 0.73 0.69 0.69
SA210-30 210-31 210	1-7/8 1-15/16	50	90 3.5433	20 0.7874	30.2 1.1890	43.6 1.7165	11 0.4331	6.5 0.2559	18.3 0.7205	69.9 2.7520	35100	23200	0.83 0.79 0.79
SA211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	100 3.9370	24 0.9449	32.4 1.2756	48.4 1.9055	12 0.4724	7.2 0.2835	20.7 0.8150	76.2 3.0000	43550	29200	0.96 0.87 0.84 0.81
SA212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	110 4.3307	24 0.9449	33.4 1.3150	49.3 1.9409	12 0.4724	8 0.3150	22.3 0.8780	84.2 3.3150	47800	32800	1.30 1.20 1.09
