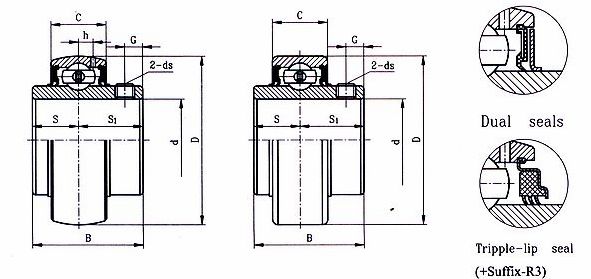

UC200 series
|
Bearing
No. |
Shaft Dia. |
Dimensions(mm) |
Basic load rating(N) |
Mass(kg) | ||||||||||
|
d |
D |
B |
C |
S |
S1 |
G |
h |
ds |
Dynamic
Cr |
Static
Cor |
UC |
RB | ||
|
(in.) |
(mm) | |||||||||||||
|
UC202
RB202-10
203
203-11 |
5/8
11/16 |
15
17
|
40
1.5748 |
27.4
1.0787 |
14
0.5512 |
11.5
0.4528 |
15.9
0.6260 |
4.5
0.1772 |
3.5
0.1378 |
M5X0.8
10#-32UNF |
9550 |
4780 |
0.12
0.12
0.11
0.11 |
---
---
---
--- |
|
UC204-12
RB204 |
3/4
|
20 |
47
1.8540 |
31
1.2205 |
16
0.6299 |
12.7
0.5000 |
18.3
0.7205 |
4.7
0.1850 |
4.4
0.1732 |
M6X1
1/4-28UNF |
12800 |
6650 |
0.18
0.17 |
0.19
0.18 |
|
UC205-14
RB205-15
205
205-16 |
7/8
15/16
1 |
25 |
52
2.0472 |
34
1.3386 |
17
0.6693 |
14.3
0.5630 |
19.7
0.7756 |
5.5
0.2165 |
4.3
0.1693 |
M6X1
1/4-28UNF |
14000 |
7880 |
0.23
0.22
0.21
0.20 |
0.26
0.25
0.24
0.23 |
|
UC206-18
RB206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30
|
62
2.4409 |
38.1
1.5000 |
19
0.7480 |
15.9
0.6260 |
22.2
0.8740 |
5.5
0.2165 |
5
0.1969 |
M6X1
1/4-28UNF |
19500 |
11200 |
0.34
0.32
0.31
0.30 |
0.38
0.36
0.35
0.34 |
|
UC207-20
RB207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35 |
72
2.8346 |
49.2
1.6890 |
20
0.7874 |
17.5
0.6890 |
25.4
1.0000 |
6.5
0.2559 |
5.8
0.2283 |
M8X1
5/16-24UNF |
25700 |
15200 |
0.53
0.51
0.48
0.47
0.45 |
0.61
0.59
0.56
0.54
0.52 |
|
UC208-24
RB208-25
208 |
1-1/2
1-9/16 |
40 |
80
3.1496 |
42.9
1.9370 |
21
0.8268 |
19
0.7480 |
30.2
1.1890 |
8
0.3150 |
6.3
0.2480 |
M8X1
5/16-24UNF |
29600 |
18200 |
0.68
0.65
0.64 |
0.76
0.74
0.73 |
|
UC209-26
RB209-27
209-28
209 |
1-5/8
1-11/16
1-3/4 |
45 |
85
3.3465 |
49.2
1.9370 |
22
0.8661 |
19
0.7480 |
30.2
1.1890 |
8
0.3150 |
6.8
0.2677 |
M8X1
5/16-24UNF |
31850 |
20800 |
0.78
0.74
0.70
0.68 |
0.88
0.85
0.81
0.79 |
|
UC210-30
RB210-31
210
210-32 |
1-7/8
1-15/16
2 |
50 |
90
3.5433 |
51.6
2.0315 |
23
0.9055 |
19
0.7480 |
32.6
1.2835 |
9
0.3543 |
6.5
0.2559 |
M10X1.25
3/8-24UNF |
35100 |
23200 |
0.87
0.82
0.80
0.78 |
0.98
0.93
0.90
--- |
|
UC211-32
RB211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
100
3.9370 |
55.6
2.1890 |
25
0.9843 |
22.2
0.8740 |
33.4
1.3150 |
9
0.3543 |
7.2
0.2835 |
M10X1.25
3/8-24UNF |
43550 |
29200 |
1.27
1.17
1.12
1.10 |
1.40
1.30
1.24
1.22 |
|
UC212-36
RB212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
110
4.3307 |
65.1
2.5630 |
27
1.0630 |
25.4
1.0000 |
39.7
1.5630 |
10.5
0.4134 |
8.2
0.3228 |
M10X1.25
3/8-24UNF |
47800 |
32800 |
1.67
1.53
1.53
1.45 |
1.88
1.74
1.72
1.65 |
|
UC213-40
213 |
2-1/2
|
65 |
120
4.7244 |
65.1
2.5630 |
28
1.1024 |
25.4
1.0000 |
39.7
1.5630 |
12
0.4724 |
8
0.3150 |
M12X1.25
7/16-20UNF |
57200 |
40000 |
1.94
1.86 |
--- |
|
UC214-44
214 |
2-3/4
|
70 |
125
4.9213 |
74.6
2.9370 |
30
1.1811 |
30.2
1.1890 |
44.4
1.7480 |
12
0.4724 |
9
0.3543 |
M12X1.25
7/16-20UNF |
60800 |
45000 |
2.06
2.05 |
--- |
|
UC215-47
215
215-48 |
2-15/16
3 |
75 |
130
5.1181 |
77.8
3.0630 |
30
1.1811 |
33.3
1.3110 |
44.5
1.7520 |
12
0.4724 |
9
0.3543 |
M12X1.25
7/16-20UNF |
66000 |
49500 |
2.30
2.21
2.13 |
--- |
|
UC216 |
|
80 |
140
5.5118 |
82.6
3.2520 |
33
1.2992 |
33.3
1.3110 |
49.3
1.9410 |
14
0.5512 |
10.3
0.4055 |
M12X1.25
7/16-20UNF |
71500 |
54200 |
2.79 |
--- |
|
UC217-52
217 |
3-1/4
|
85 |
150
5.9055 |
85.7
3.3740 |
35
1.3780 |
34.1
1.3425 |
51.6
2.0315 |
14
0.5512 |
11
0.4331 |
M12X1.25
7/16-20UNF |
83200 |
63800 |
3.60
3.38 |
--- |
|
UC218-56
218 |
3-1/2
|
90 |
160
6.2992 |
96
3.7795 |
37
1.4567 |
39.7
1.5630 |
56.3
2.2165 |
14
0.5512 |
12
0.4724 |
M12X1.25
1/2-20UNF |
95900 |
71500 |
4.56
4.45 |
--- |
