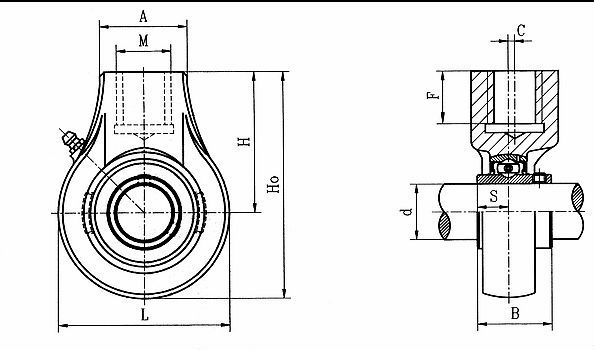

UCHA200 series
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bearing No. |
Housing No. |
Mass (kg) | |||||||||
|
d |
H0 |
L |
C |
H |
A |
F |
M |
B |
S | |||||
|
(in.) |
(mm) | |||||||||||||
|
UCHA203 203-11 |
11/16 |
17 |
88.5 |
57 |
0 |
60 |
38 |
19 |
G3/4 |
27.4 |
11.5 |
UC203 203-11 |
HA203 |
0.6 |
|
UCHA204-12 204 |
3/4 |
20 |
96 |
64 |
0 |
64 |
40 |
19 |
G3/4 |
31 |
12.7 |
UC204-12 204 |
HA204 |
0.7 |
|
UCHA205-14 205-15 205 205-16 |
7/8 15/16 1 |
25 |
103 |
78 |
0 |
64 |
40 |
19 |
G3/4 |
34 |
14.3 |
UC205-14 205-15 205 205-16 |
HA205 |
0.88 |
|
UCHA206-18 206 206-19 206-20 |
1-1/8 1-3/16 1-1/4 |
30 |
103 |
78 |
0 |
64 |
40 |
19 |
G3/4 |
38.1 |
15.9 |
UC206-18 206 206-19 206-20 |
HA206 |
1.0 |
|
UCHA207-20 207-21 207-22 207 207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
116 |
92 |
0 |
70 |
40 |
19 |
G3/4 |
42.9 |
17.5 |
UC207-20 207-21 207-22 207 207-23 |
HA207 |
1.2 |
|
UCHA208-24 208-25 208 |
1-1/2 1-9/16 |
40 |
121 |
96 |
2 |
73 |
40 |
19 |
G3/4 |
49.2 |
19 |
UC208-24 208-25 208 |
HA208 |
1.3 |
|
UCHA209-26 209-27 209-28 209 |
1-5/8 1-11/16 1-3/4 |
45 |
136 |
108 |
5 |
82 |
48 |
21 |
G1 |
49.2 |
19 |
UC209-26 209-27 209-28 209 |
HA209 |
1.8 |
|
UCHA210-30 210-31 210 210-32 |
1-7/8 1-15/16 2 |
50 |
140.5 |
115 |
5 |
83 |
48 |
21 |
G1 |
51.6 |
19 |
UC210-30 210-31 210 210-32 |
HA210 |
2.1 |
|
UCHA211-32 211-34 211 211-35 |
2 2-1/8 2-3/16 |
55 |
150 |
126 |
7 |
87 |
60 |
24 |
G1-1/4 |
55.6 |
22.2 |
UC211-32 211-34 211 211-35 |
HA211 |
2.8 |
|
UCHA212-36 212 212-38 212-39 |
2-1/4 2-3/8 2-7/16 |
60 |
173 |
142 |
9 |
102 |
60 |
28 |
G1-1/4 |
65.1 |
25.4 |
UC212-36 212 212-38 212-39 |
HA212 |
3.9 |
|
UCHA213-40 213 |
2-1/2 |
65 |
200 |
166 |
9.5 |
117 |
70 |
32 |
G1-1/2 |
65.1 |
25.4 |
UC213-40 213 |
HA213 |
5.9 |
|
UCHA214-44 214 |
2-3/4 |
70 |
200 |
166 |
9.5 |
117 |
70 |
32 |
G1-1/2 |
74.6 |
30.2 |
UC214-44 214 |
HA214 |
5.9 |
|
UCHA215-47 215 215-48 |
2-15/16 2 |
75 |
200 |
166 |
9.5 |
117 |
70 |
32 |
G1-1/2 |
77.8 |
33.2 |
UC215-47 215 215-48 |
HA215 |
5.9 |
