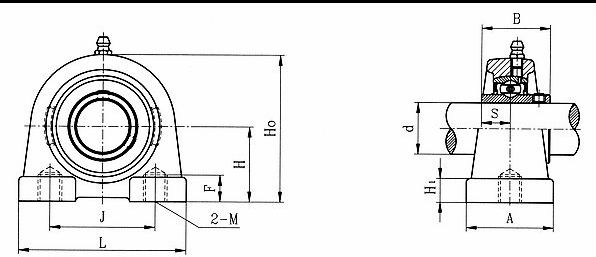

UCPA200 series
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bearing
No. |
Housing
No. |
Mass
(kg) | ||||||||||
|
d |
H |
J |
L |
A |
H0 |
H1 |
S |
B |
F |
M | |||||
|
(in.) |
(mm) | ||||||||||||||
|
UCPA202
202-10
203
203-11 |
5/8
11/16 |
15
17 |
30.2 |
70 |
48 |
36 |
57 |
10 |
11.5 |
27.4 |
9 |
M8 |
UC202
202-10
203
203-11 |
PA203 |
-- |
|
UCPA204-12
204 |
3/4
|
20 |
30.2 |
76 |
52 |
40 |
62 |
11 |
12.7 |
31 |
13 |
M10×1.5 |
UC204-12
204 |
PA204 |
0.6 |
|
UCPA205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
36.5 |
84 |
56 |
38 |
72 |
12 |
14.3 |
34 |
15 |
M10×1.5 |
UC205-14
205-15
205
205-16 |
PA205 |
0.8 |
|
UCPA206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
42.9 |
94 |
66 |
48 |
84 |
13 |
15.9 |
38.1 |
18 |
M14×2 |
UC206-18
206
206-19
206-20 |
PA206 |
1.2 |
|
UCPA207-20
207-21
207-22
207
207-23 |
1-1/4
1-5/16
1-3/8
1-7/16 |
35
|
47.6 |
110 |
80 |
48 |
95 |
13 |
17.5 |
42.9 |
20 |
M14×2 |
UC207-20
207-21
207-22
207
207-23 |
PA207 |
1.7 |
|
UCPA208-24
208-25
208 |
1-1/12
1-9/16
|
40 |
49.2 |
116 |
84 |
54 |
100 |
13 |
19 |
49.2 |
20 |
M14×2 |
UC208-24
208-25
208 |
PA208 |
2.0 |
|
UCPA209-26
209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
54.2 |
120 |
90 |
60 |
108 |
13 |
19 |
49.2 |
25 |
M14×2 |
UC209-26
209-27
209-28
209 |
PA209 |
2.2 |
|
UCPA210-30
210-31
210
210-32 |
1-7/8
1-15/16
2 |
50 |
57.2 |
130 |
94 |
60 |
116 |
14 |
19 |
51.6 |
25 |
M16×2 |
UC210-30
210-31
210
210-32 |
PA210 |
2.8 |
|
UCPA211-32
211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
63.5 |
140 |
104 |
66 |
125 |
14 |
22.2 |
55.6 |
25 |
M16×2 |
UC211-32
211-34
211
211-35 |
PA211 |
3.0 |
|
UCPA212-36
212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
69.9 |
150 |
114 |
68 |
138 |
15 |
25.4 |
65.1 |
25 |
M16×2 |
UC212-36
212
212-38
212-39 |
PA212 |
4.24 |
|
UCPA213-40
213 |
2-1/2
|
65 |
76.2 |
160 |
124 |
70 |
150 |
15 |
25.4 |
65.1 |
25 |
M16×2 |
UC213-40
213 |
PA213 |
-- |
