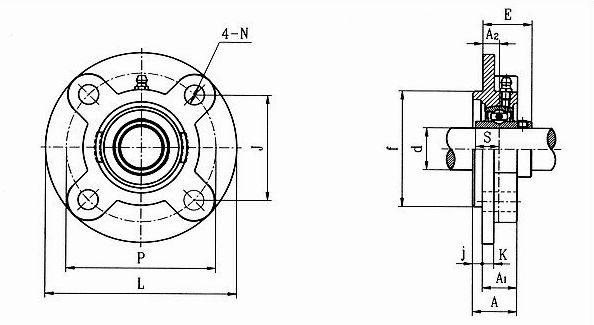

UCFC200 series
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bolt Size |
Bearing No. |
Housing No. |
Mass (kg) | ||||||||||||
|
d |
L |
P |
A2 |
A1 |
A |
j |
K |
N |
J |
f |
S |
E | ||||||
|
(in.) |
(mm) | |||||||||||||||||
|
UCFC202 202-10 203 203-11 |
5/8 11/16 |
15 17 |
90 |
70 |
10 |
19 |
23 |
4 |
5 |
10 |
49.5 |
55 |
11.5 |
25.9 |
M8 |
UC202 202-10 203 203-11 |
FC203 |
0.56 0.54 |
|
UCFC204-12 204 |
3/4 |
20 |
100 |
78 |
10 |
20.5 |
25.5 |
5 |
6 |
11.5 |
55.1 |
62 |
12.7 |
28.3 |
M10 |
UC204-12 204 |
FC204 |
0.76 |
|
UCFC205-14 205-15 205 205-16 |
7/8 15/16 1 |
25 |
115 |
90 |
10 |
21 |
27 |
6 |
7 |
12 |
63.6 |
70 |
14.3 |
29.7 |
M10 |
UC205-14 205-15 205 205-16 |
FC205 |
0.96 |
|
UCFC206-18 206 206-19 206-20 |
1-1/8 1-3/16 1-1/4 |
30 |
125 |
100 |
10 |
23 |
31 |
8 |
8 |
12 |
70.7 |
80 |
15.9 |
32.2 |
M10 |
UC206-18 206 206-19 206-20 |
FC206 |
1.37 |
|
UCFC207-20 207-21 207-22 207 207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
135 |
110 |
11 |
26 |
34 |
8 |
9 |
14 |
77.8 |
90 |
17.5 |
36.4 |
M12 |
UC207-20 207-21 207-22 207 207-23 |
FC207 |
1.70 |
|
UCFC208-24 208-25 208 |
1-1/2 1-9/16 |
40 |
145 |
120 |
11 |
26 |
36 |
10 |
9 |
14 |
84.8 |
100 |
19 |
41.2 |
M, 12 |
UC208-24 208-25 208 |
FC208 |
2.0 |
|
UCFC209-26 209-27 209-28 209 |
1-5/8 1-11/16 1-3/4 |
45 |
160 |
132 |
10 |
26 |
38 |
12 |
10 |
16 |
93.3 |
105 |
19 |
40.2 |
M14 |
UC209-26 209-27 209-28 209 |
FC209 |
2.7 |
|
UCFC210-30 210-31 210 |
1-7/8 1-15/16 |
50 |
165 |
138 |
10 |
28 |
40 |
12 |
14 |
16 |
97.6 |
110 |
19 |
42.6 |
M14 |
UC210-30 210-31 210 |
FC210 |
2.9 |
|
UCFC211-32 211-34 211 211-35 |
2 2-1/8 2-3/16 |
55 |
185 |
150 |
13 |
30 |
42 |
12 |
13 |
19 |
106.1 |
125 |
22.2 |
46.4 |
M16 |
UC211-32 211-34 211 211-35 |
FC211 |
4.2 |
|
UCFC212-36 212 212-38 212-39 |
2-1/4 2-3/8 2-7/16 |
60 |
195 |
160 |
17 |
36 |
48 |
12 |
15 |
19 |
113.1 |
135 |
25.4 |
56.7 |
M16 |
UC212-36 212 212-38 212-39 |
FC212 |
4.94 |
|
UCFC213-40 213 |
2-1/2 |
65 |
205 |
170 |
16 |
35 |
49 |
14 |
15 |
19 |
120.2 |
145 |
25.4 |
55.7 |
M16 |
UC213-40 213 |
FC213 |
5.7 |
|
UCFC214-44 214 |
2-3/4 |
70 |
215 |
177 |
17 |
38 |
52 |
14 |
16 |
19 |
125.1 |
150 |
30.2 |
61.4 |
M16 |
UC214-44 214 |
FC214 |
6.8 |
|
UCFC215 215-48 |
3 |
75 |
220 |
184 |
18 |
39 |
55 |
16 |
17 |
19 |
130.1 |
160 |
33.3 |
62.5 |
M16 |
UC215 215-48 |
FC215 |
7.2 |
|
UCFC216 |
|
80 |
240 |
200 |
18 |
42 |
58 |
16 |
18 |
23 |
141.4 |
170 |
33.3 |
67.3 |
M20 |
UC216 |
FC216 |
8.7 |
|
UCFC217-52 217 |
3-1/4 |
85 |
250 |
208 |
18 |
45 |
63 |
18 |
20 |
23 |
147.1 |
180 |
34.1 |
69.6 |
M20 |
UC217-52 217 |
FC217 |
10.3 |
|
UCFC218-56 218 |
3-1/2 |
90 |
265 |
220 |
22 |
50 |
68 |
18 |
20 |
23 |
155.5 |
190 |
39.7 |
78.3 |
M20 |
UC218-56 218 |
FC218 |
13.5 |
