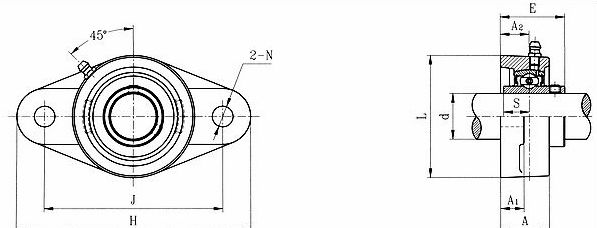

UCFL200 series
|
Unit No. |
Shaft Dia. |
Dimensions(mm) |
Bolt
Size |
Bearing
No. |
Housing No. |
Mass
(kg) |
|
Available | |||||||||
|
d |
H |
J |
L |
A2 |
A1 |
A |
E |
N |
S |
|
N | ||||||
|
(in.) |
(mm) |
| |||||||||||||||
|
UCFL202
202-10
203
203-11 |
5/8
11/16 |
15
17
|
99 |
76.5 |
57 |
15 |
11 |
25.5 |
30.9 |
11.5 |
11.5 |
M10 |
UC202
202-10
203
203-11 |
FL203 |
0.45
0.43 |
|
-- |
|
UCFL204-12
204 |
3/4
|
20 |
113 |
90 |
60 |
15 |
11 |
25.5 |
33.3 |
11.5 |
12.7 |
M10 |
UC204-12
204 |
FL204 |
0.48 |
|
12 |
|
UCFL205-14
205-15
205
205-16 |
7/8
15/16
1 |
25 |
130 |
99 |
68 |
16 |
13 |
27 |
35.7 |
11.5 |
14.3 |
M10 |
UC205-14
205-15
205
205-16 |
FL205 |
0.6 |
|
16 |
|
UCFL206-18
206
206-19
206-20 |
1-1/8
1-3/16
1-1/4 |
30 |
148 |
117 |
80 |
18 |
13 |
31 |
40.2 |
11.5 |
15.9 |
M10 |
UC206-18
206
206-19
206-20 |
FL206 |
0.9 |
|
16 |
|
UCFL207-20
207-21
207
207-23 |
1-1/4
1-5/16
1-7/16 |
35
|
161 |
130 |
90 |
19 |
14 |
34 |
44.4 |
14 |
17.5 |
M12 |
UC207-20
207-21
207
207-23 |
FL207 |
1.2 |
|
16 |
|
UCFL208-24
208-25
208 |
1-1/2
1-9/16
|
40 |
175 |
144 |
100 |
21 |
14 |
36 |
51.2 |
14 |
19 |
M12 |
UC208-24
208-25
208 |
FL208 |
1.5 |
|
16 |
|
UCFL209-26
209-27
209-28
209 |
1-5/8
1-11/16
1-3/4
|
45 |
188 |
148 |
108 |
22 |
16 |
38 |
52.2 |
18 |
19 |
M16 |
UC209-26
209-27
209-28
209 |
FL209 |
1.9 |
|
19 |
|
UCFL210-30
210-31
210 |
1-7/8
1-15/16
|
50 |
197 |
157 |
115 |
22 |
16 |
40 |
54.6 |
18 |
19 |
M16 |
UC210-30
210-31
210 |
FL210 |
2.2 |
|
19 |
|
UCFL211-32
211-34
211
211-35 |
2
2-1/8
2-3/16 |
55 |
224 |
184 |
130 |
25 |
18 |
43 |
58.4 |
18 |
22.2 |
M16 |
UC211-32
211-34
211
211-35 |
FL211 |
3.1 |
|
19 |
|
UCFL212-36
212
212-38
212-39 |
2-1/4
2-3/8
2-7/16 |
60
|
250 |
202 |
140 |
29 |
18 |
48 |
68.7 |
18 |
25.4 |
M16 |
UC212-36
212
212-38
212-39 |
FL212 |
4.0 |
|
23 |
|
UCFL213-40
213 |
2-1/2
|
65 |
258 |
210 |
155 |
30 |
20 |
50 |
69.7 |
23 |
25.4 |
M20 |
UC213-40
213 |
FL213 |
5.0 |
|
-- |
|
UCFL214-44
214 |
2-3/4
|
70 |
265 |
216 |
160 |
31 |
20 |
54 |
75.4 |
23 |
30.2 |
M20 |
UC214-44
214 |
FL214 |
5.6 |
|
-- |
|
UCFL215-47
215
215-48 |
2-15/16
3 |
75
|
275 |
225 |
164 |
34 |
22 |
55 |
78.5 |
23 |
33.3 |
M20 |
UC215-47
215
215-48 |
FL215 |
6.2 |
|
-- |
|
UCFL216 |
|
80 |
290 |
233 |
180 |
34 |
22 |
58 |
83.3 |
25 |
33.3 |
M22 |
UC216 |
FL216 |
7.8 |
|
-- |
|
UCFL217-52
217 |
3-1/4
|
85 |
305 |
248 |
190 |
36 |
22 |
63 |
87.6 |
25 |
34.1 |
M22 |
UC217-52
217 |
FL217 |
9.8 |
|
-- |
|
UCFL218-56
218 |
3-1/2
|
90 |
320 |
265 |
205 |
40 |
23 |
68 |
96.3 |
25 |
39.7 |
M22 |
UC218-56
218 |
FL218 |
12.4 |
|
-- |
