Stainless steel bearings

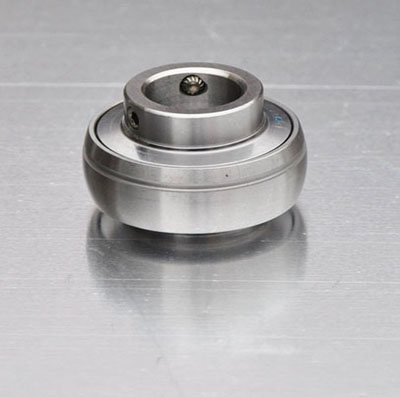

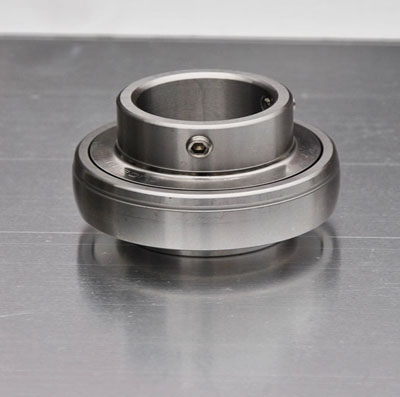

stainless steel ball bearing units

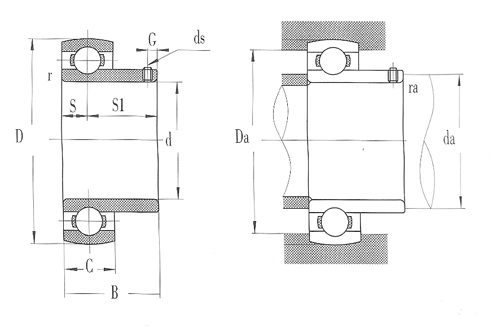

轴承型号Bering No.	孔径 Bore Dia(d)		外形尺寸(mm) Boudary dimonsions							Mass重量
	in	mm	D	B	C	S	S1	G	ds	(Kg)(参数)(refer)
										440C
SSUC201-8	1/2		47	31	17	12.7	18.3	5	1/4-28 M6P0.75	0.20
SSUC201		12								0.21
SSUC202-9	9/16
SSUC202-10	5/8									0.19
SSUC202		15								0.19
SSUC203-11	11/16									0.18
SSUC203		17								0.18
SSUC204-14	3/4		47	31	17	12.7	18.3	5	1/4-28 M6P0.75	0.16
SSUC204		20								0.16
SSUC205-13			52	34.1	17	14.3	19.8	5	1/4-28 M6P0.75	0.22
SSUC205-14	7/8									0.20
SSUC205-15	15/16									0.20
SSUC205-16	1									0.19
SSUC205		25								0.19
SSUC206-17	1.1/16		62	38.1	19	15.9	22.2	5	1/4-28 M6P0.75	0.33
SSUC206-18	11/8									031
SSUC206-19	13/16									0.32
SSUC206-20	11/4									0.31
SSUC206		30								0.31
SSUC207-20	11/4		72	42.9	20	17.5	25.4	7	5/16-24 M8P1.0	0.53
SSUC207-21	15/16									0.50
SSUC207-22	13/8									0.47
SSUC207-23	17/16									0.44
SSUC207		35								0.47
SSUC208-24	11/2		80	49.2	22	19	30.2	8	5/16-24 M8P1.0	0.66
SSUC208-25	19/16									0.63
SSUC208		40								0.61
SSUC209-26	15/8		85	49.2	22	19	30.2	8	5/16 M8P1.0	0.78
SSUC209-27	111/16									0.74
SSUC209-28	13/4									0.70
SSUC209		45								0.68
SSUC210-29	113/16		90	51.6	24	19	32.6	10	3/8-24 M10P1.25
SSUC210-30	17/8									0.85
SSUC210-31	115/16									0.83
SSUC210-32	2									0.78
SSUC210		50								0.77
SSUC211-32	2		110	55.6	25	22.4	33.4	10	3/8-24 M10P1.25	1.35
SSUC21-33	21/16									1.24
SSUC211-34	11/8									1.10
SSUC211-35	23/16									1.19
SSUC211		55								1.07
SSUC212-36	21/4		110	65.1	27	25.4	39.7	10	3/8-24 M10P1.25	1.65
SSUC212-37	25/6									1.55
SSUC212-38	23/8									1.50
SSUC212-39	27/16									1.43
SSUC212		60								1.52
