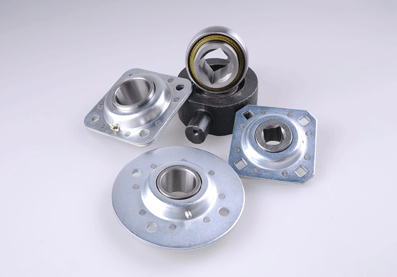

ST491,ST740,FD209,FD210,DHU series flanged disk harrow units for agricultural machinery
Flanged Disc series incorporates a bearing with two rubber "O" rings. It is encased in two heavy gauge stamped steel housings that are riveted together, which is more relubricable.
209 Series
|
Unit No. |
Bearing Bore Size
(mm)
|

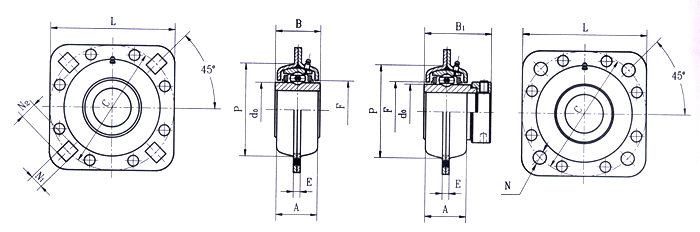

Dimensions (mm)
|
Basic Dynamic
Load Rating (N)
|
Basic Static
Load Rating (N)
|
|
H |
d |
L |
P |
B |
A |
F |
do |
E |
C |
N (N1×N2) |
|
491A |
--- |
45 |
127 |
98 |
42.8 |
42 |
60 |
57.547 |
7 |
127 |
φ13.5 |
31850
|
17500
|
|
491B |
--- |
38.86 |
127 |
98 |
42.8 |
42 |
60 |
57.547 |
7 |
127 |
13.5×16.7 |
|
ST209-1 1/8 |
29.927 |
--- |
127 |
98 |
42.8 |
42 |
60 |
57.547 |
7 |
127 |
13.5×16.7 | | |
| |
211 Series
|
Unit No. |
Bearing Bore Size
(mm)
|
Dimensions (mm)
|
Basic Dynamic
Load Rating (N)
|
Basic Static
Load Rating (N)
|
|
H |
d |
L |
P |
B1 |
B |
A |
F |
do |
E |
C |
N (N1×N2) |
|
DHU55R-211 |
--- |
55 |
139.7 |
113.5 |
--- |
51 |
46.4 |
73 |
69 |
9 |
139.7 |
13.5×15.1 |
43550
|
25000
|
|
ST211-1 3/4 |
--- |
45.212 |
139.7 |
113.5 |
--- |
55.5 |
46.4 |
73 |
69 |
9 |
139.7 |
φ13.5 |
|
ST211-1 15/16 |
--- |
49.238 |
139.7 |
113.5 |
69.9 |
--- |
46.4 |
73 |
69 |
9 |
139.7 |
φ13.5 |
|
ST211-2 3/16 |
--- |
55.575 |
139.7 |
113.5 |
--- |
55.5 |
46.4 |
73 |
69 |
9 |
139.7 |
φ13.5 |
|
DHU40S-211 |
40.878 |
--- |
139.7 |
113.5 |
--- |
51 |
46.4 |
73 |
69 |
9 |
139.7 |
13.5×15.1 | |
