Plastic bearings
TP-FB200
 |
|
Housing NO. |
Bearing NO. |
BEARING BORE DIA. (mm) |

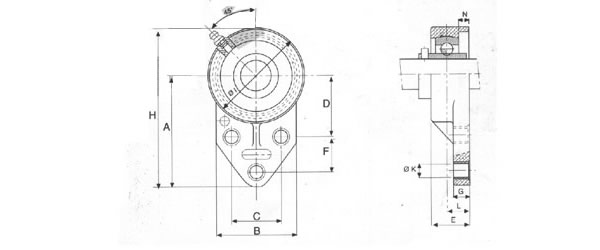

Dimensions(mm) |
Boltdia |
weight kg |
|||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
M |
N | ||||||
|
TP-FB201 |
SUC201 |
12 |
76.2 |
62 |
38.1 |
42.9 |
33.7 |
22.2 |
11.4 |
108 |
63.5 |
26.5 |
10.7 |
18.3 |
12.7 |
M10 |
0.28 |
|
|
TP-FB202 |
SUC202 |
15 |
76.2 |
62 |
38.1 |
42.9 |
33.7 |
22.2 |
11.4 |
108 |
63.5 |
26.5 |
10.7 |
18.3 |
12.7 |
M10 |
0.26 |
|
|
TP-FB203 |
SUC203 |
17 |
76.2 |
62 |
38.1 |
42.9 |
33.7 |
22.2 |
11.4 |
108 |
63.5 |
26.5 |
10.7 |
18.3 |
12.7 |
M10 |
0.25 |
|
|
TP-FB204 |
SUC204 |
20 |
76.2 |
62 |
38.1 |
42.9 |
33.7 |
22.2 |
11.4 |
108 |
63.5 |
26.5 |
10.7 |
18.3 |
12.7 |
M10 |
0.25 |
|
|
TP-FB205 |
SUC205 |
25 |
85.7 |
63.5 |
41.3 |
46 |
41.2 |
28.6 |
11.4 |
120.6 |
70 |
34 |
10.7 |
19.7 |
14.3 |
M10 |
0.30 |
|
|
TP-FB206 |
SUC206 |
30 |
96.5 |
76 |
47.6 |
52.4 |
41.5 |
31.8 |
13.3 |
138.5 |
83 |
32 |
10.7 |
22.2 |
15.9 |
M10 |
0.46 |
|
|
TP-FB207 |
SUC207 |
35 |
109.5 |
89 |
50.8 |
60.3 |
47.1 |
31.8 |
16.1 |
157 |
95 |
36.5 |
13.1 |
25.4 |
17.5 |
M12 |
0.66 |
|
